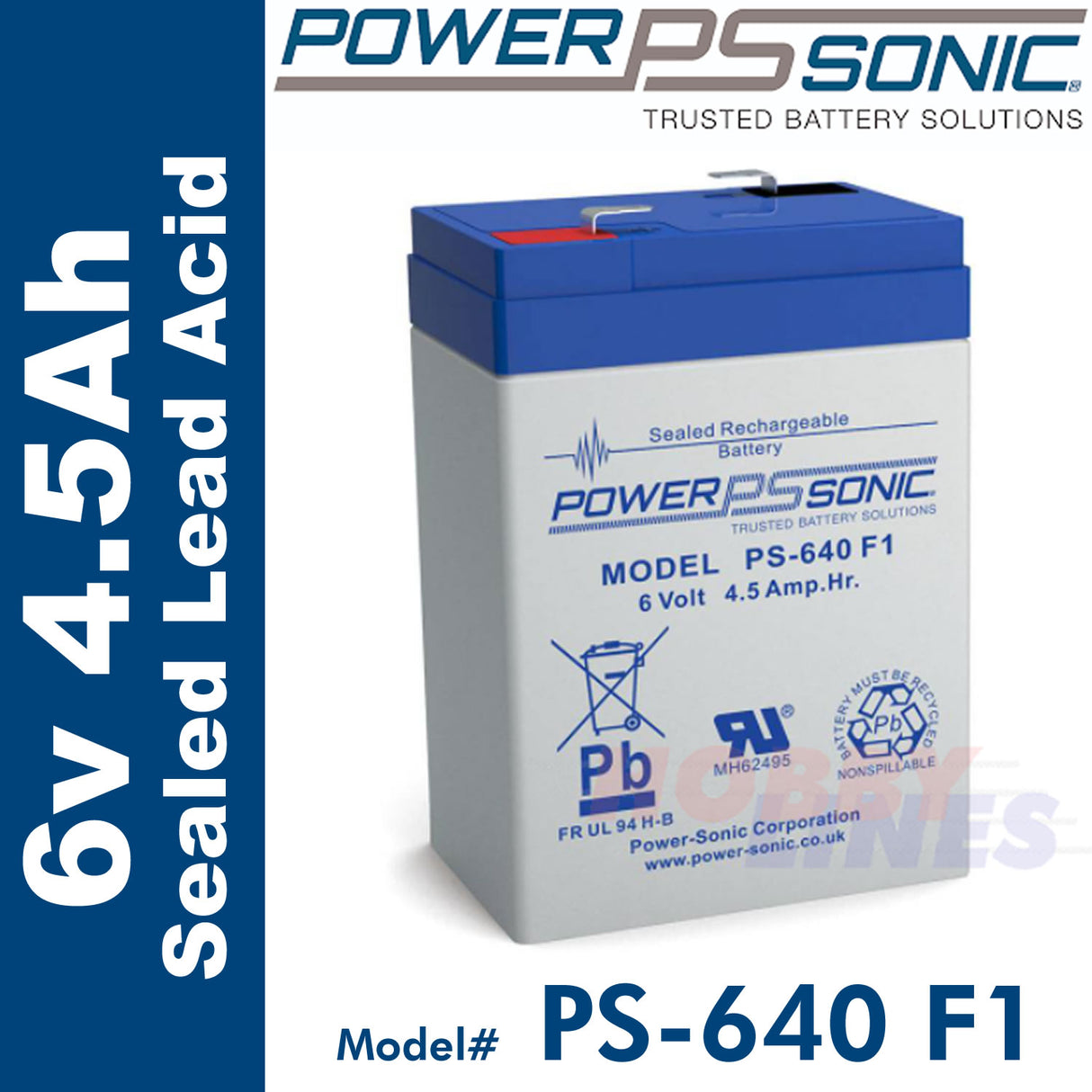

PS-640
6V 4.5 AH @ 20-hr.
6V 4.1 AH @ 10-hr.
Rechargeable Sealed Lead Acid Battery PS – General Purpose Series
APPLICATIONS
- General purpose
- Emergency lighting
- Medical
- Fire and security
FEATURES
- Absorbent Glass Mat (AGM) technology for superior performance
- Valve regulated, maintenance free spill proof construction
- Power/volume ratio yielding excellent energy density
- Rugged vibration and impact resistant ABS case and cover
- Gas recombination technology
- 5 year design life APPROVALS
- Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
- U.L. recognized
- ISO9001:2015 – Quality management systems
DIMENSIONS: inch (mm)
- L: 2.76 (70mm)
- W: 1.86 (47mm)
- H: 3.94 (100mm)
- HT: 4.25 (108mm)
PERFORMANCE SPECIFICATIONS
- Nominal Voltage 6 volts (3 cells)
- Nominal Capacity 20-hr. (225mA to 5.25 volts) 10-hr. (410mA to 5.25 volts) 5-hr. (650mA to 5.10 volts) 1-hr. (2.75A to 4.50 volts) 4.50 AH 4.10 AH 3.25 AH 2.75 AH
- Approximate Weight 1.79 lbs. (0.81 kg)
