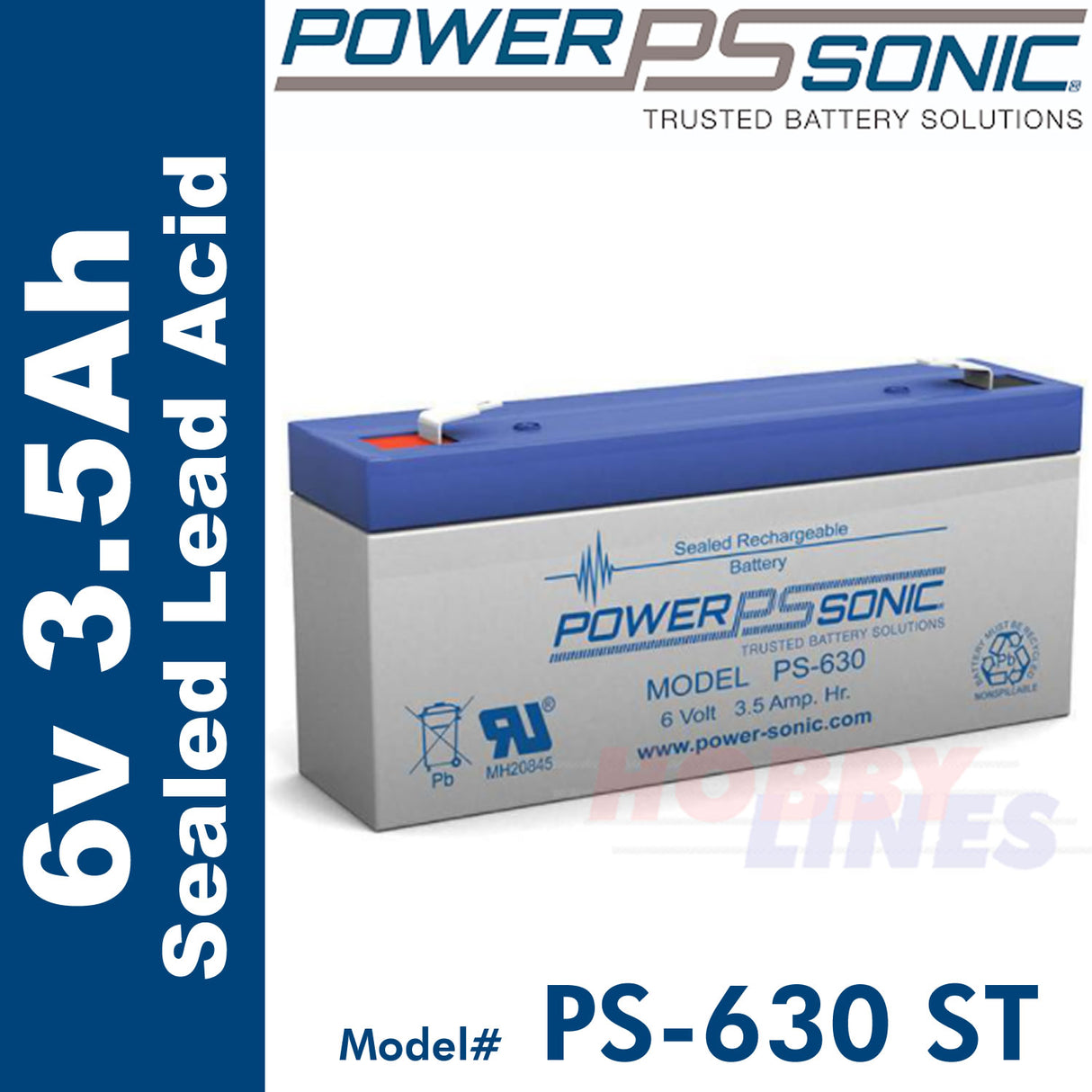

PS-630ST
6V 3.5 AH @ 20-hr.
6V 3.3 AH @ 10-hr.
Rechargeable Sealed Lead Acid Battery PS – General Purpose Series
APPLICATIONS
- General purpose
- Emergency lighting
- Medical
- Fire and security
FEATURES
- Absorbent Glass Mat (AGM) technology for superior performance
- Valve regulated, maintenance free spill proof construction
- Power/volume ratio yielding excellent energy density
- Rugged vibration and impact resistant ABS case and cover
- Gas recombination technology
- 5 year design life APPROVALS
- Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
- U.L. recognized
- ISO9001:2015 – Quality management systems
DIMENSIONS: inch (mm)
- L: 5.28 (134)
- W: 1.34 (34)
- H: 2.35 (60)
- HT: 2.59 (66) .
PERFORMANCE SPECIFICATIONS
- Nominal Voltage 6 volts (3 cells)
- Nominal Capacity 20-hr. (175mA to 5.25 volts) 10-hr. (330mA to 5.25 volts) 5-hr. (590mA to 5.10 volts) 1-hr. (2.17A to 4.50 volts) 3.50 AH 3.30 AH 2.95 AH 2.17 AH
- Approximate Weight 1.37 lbs. (0.62 kg)
